Air Defriost 1/2-5HP Low profile Cooler units
Feature: Low profile design evaporator unit, for reducing footprint. Equipped with air defrost function or electricdeforst function More space in the electrical cavity makes the unieasier fo service and install. Electrical board is facing side for easy installationand seryicing Not include LSV and TXV, convenient on-siteinstallation. Powerful air flow results in improved circulation. Coi! are constructed with copper tubes ancenhanced anti-corrosion aluminum fins. keplerx.net Aluminum case for corrosion protection.
retail price：
999
market price：
999
Number：
Weight：
kg
remaining stock
0
-
Model
- Model 1
- Model 2
- Model 3
- Model 4
- Model 5
- Model 6
- Model 7
- Model 8
- Model 9
- Model 10
隐藏域元素占位
- 产品描述
-
- Commodity name: Air Defriost 1/2-5HP Low profile Cooler units
Feature: Low profile design evaporator unit, for reducing footprint. Equipped with air defrost function or electricdeforst function More space in the electrical cavity makes the unieasier fo service and install. Electrical board is facing side for easy installationand seryicing Not include LSV and TXV, convenient on-siteinstallation. Powerful air flow results in improved circulation. Coi! are constructed with copper tubes ancenhanced anti-corrosion aluminum fins. keplerx.net Aluminum case for corrosion protection.

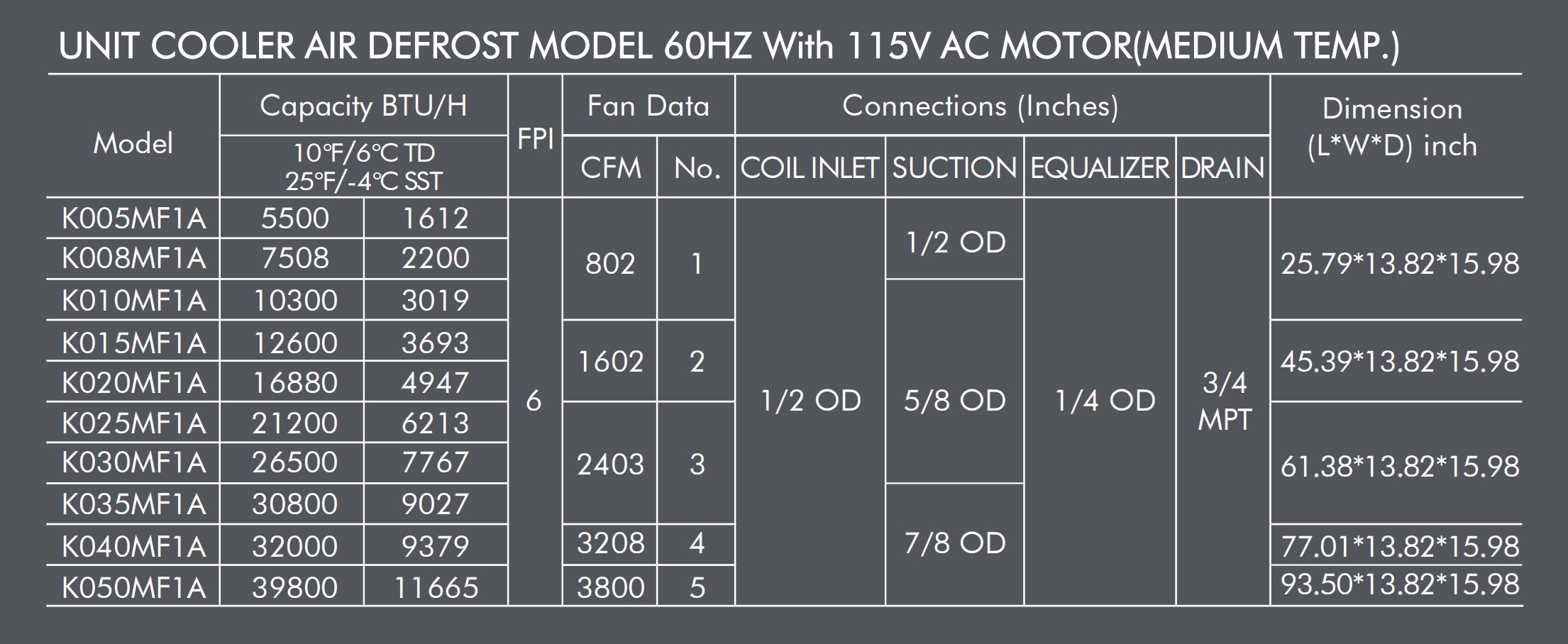

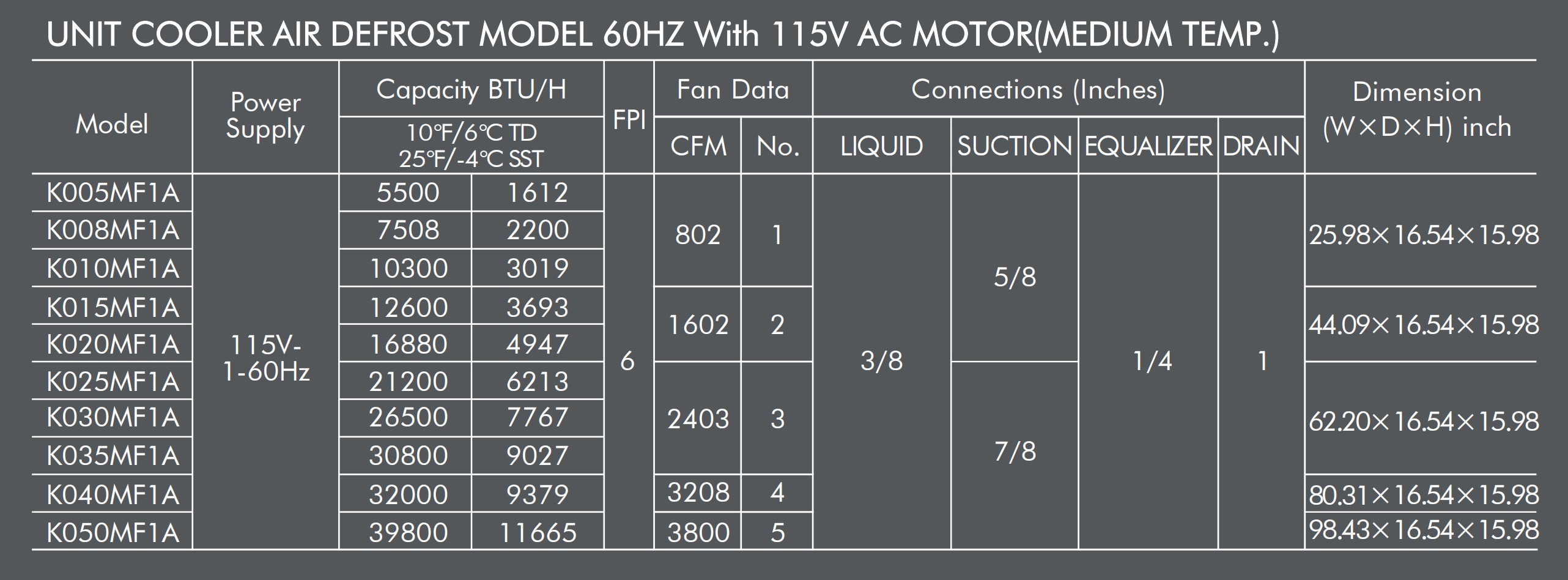

Medium Temp. Model HP V-Ph-Hz Capacity Connections(Inch) AC Fan(s)Data Demension (W×D×H))inch 10°F TD, 25°F SST Coil Inlet Suction Equalizer Drain CFM No. K055MF1A 1/2 115V,1Ph,60Hz 5500 1/2 1/2 1/4OD 3/4MPT 802 1 25.98×18.31×15.98 K075MF1A 3/4 7508 1/2 1/2 1/4OD 3/4MPT 802 1 25.98×18.31×15.98 K103MF1A 1 10300 1/2 1/2 1/4OD 3/4MPT 802 1 25.98×18.31×15.98 K126MF1A 1-1/2 12600 1/2 1/2 1/4OD 3/4MPT 1602 2 40.09×18.31×15.98 K168MF1A 2 16880 1/2 5/8 1/4OD 3/4MPT 1602 2 40.09×18.31×15.98 K212MF1A 2-1/2 21200 1/2 5/8 1/4OD 3/4MPT 2403 3 62.20×18.31×15.98 K265MF1A 3 26500 1/2 7/8 1/4OD 3/4MPT 2403 3 62.20×18.31×15.98 K308MF1A 3-1/2 30800 1/2 7/8 1/4OD 3/4MPT 2403 3 80.31×18.31×15.98 K320MF1A 4 32000 1/2 7/8 1/4OD 3/4MPT 3208 4 80.31×18.31×15.98 K398MF1A 5 39800 1/2 7/8 1/4OD 3/4MPT 3800 5 98.43×18.31×15.98
Product Details
| Medium Temp. Model | HP | V-Ph-Hz | Capacity | Connections(Inch) | AC Fan(s)Data | Demension (W×D×H))inch | ||||
| 10°F TD, 25°F SST | Coil Inlet | Suction | Equalizer | Drain | CFM | No. | ||||
| K055MF1A | 1/2 | 115V,1Ph,60Hz | 5500 | 1/2 | 1/2 | 1/4OD | 3/4MPT | 802 | 1 | 25.98×18.31×15.98 |
| K075MF1A | 3/4 | 7508 | 1/2 | 1/2 | 1/4OD | 3/4MPT | 802 | 1 | 25.98×18.31×15.98 | |
| K103MF1A | 1 | 10300 | 1/2 | 1/2 | 1/4OD | 3/4MPT | 802 | 1 | 25.98×18.31×15.98 | |
| K126MF1A | 1-1/2 | 12600 | 1/2 | 1/2 | 1/4OD | 3/4MPT | 1602 | 2 | 40.09×18.31×15.98 | |
| K168MF1A | 2 | 16880 | 1/2 | 5/8 | 1/4OD | 3/4MPT | 1602 | 2 | 40.09×18.31×15.98 | |
| K212MF1A | 2-1/2 | 21200 | 1/2 | 5/8 | 1/4OD | 3/4MPT | 2403 | 3 | 62.20×18.31×15.98 | |
| K265MF1A | 3 | 26500 | 1/2 | 7/8 | 1/4OD | 3/4MPT | 2403 | 3 | 62.20×18.31×15.98 | |
| K308MF1A | 3-1/2 | 30800 | 1/2 | 7/8 | 1/4OD | 3/4MPT | 2403 | 3 | 80.31×18.31×15.98 | |
| K320MF1A | 4 | 32000 | 1/2 | 7/8 | 1/4OD | 3/4MPT | 3208 | 4 | 80.31×18.31×15.98 | |
| K398MF1A | 5 | 39800 | 1/2 | 7/8 | 1/4OD | 3/4MPT | 3800 | 5 | 98.43×18.31×15.98 | |
